En masse Buried Chain Scraper Conveyor is used in horizontally (or not more than 15 °) transporting powder or small granular materials. The chain scraper conveyor is reasonable, novel structure, long service life, high reliability operation, energy efficient, sealing, safe and convenient maintenance. There are two models MS, MC chain scraper conveyor.

En masse Buried Chain Scraper Conveyor is widely used in building, chemical, thermal power, food processing, mining and other industries.

Send Inquiry

Working Principle

When Scraper Conveyor transports horizontally, the pressure which comes from chains in conveying direction to the materials and the action which comes from the materials themselves cause internal friction.This friction ensures the stable situation between material layers, and it can overcome external frictional resistance which caused by moving materials in the trough and make materials transport as a whole fluid.

Features

Large throughput,be up to 6m3/h—500m3/h;
Low energy consumption, with the aid of frictions between the materials ,the friction force can push the materials forward ,so the power can be saved 40% to 50% than screw conveyor.
Totallyenclosed, anti-pollution construction design,reducing the materials to overflow.
Long service life. The chain had been specially treated by heat treatment. The quenching process makes the service life of the chain be more than five years.
Reasonable arrangement process, material can be feed and discharged from many holes.

Model Selection Requirements

Material

Material name:

Material max. size: mm

Material max size percentage: %

Material density: t/m3

Material temperature: : ℃;

Moisture: %

Corrosive or not:

Equipment

Capacity: t/h

Lifting Height: m

Horizontal or Incline:

Incline degree: °

Connecting Device(top and bottom)

Power Supply: v, HZ

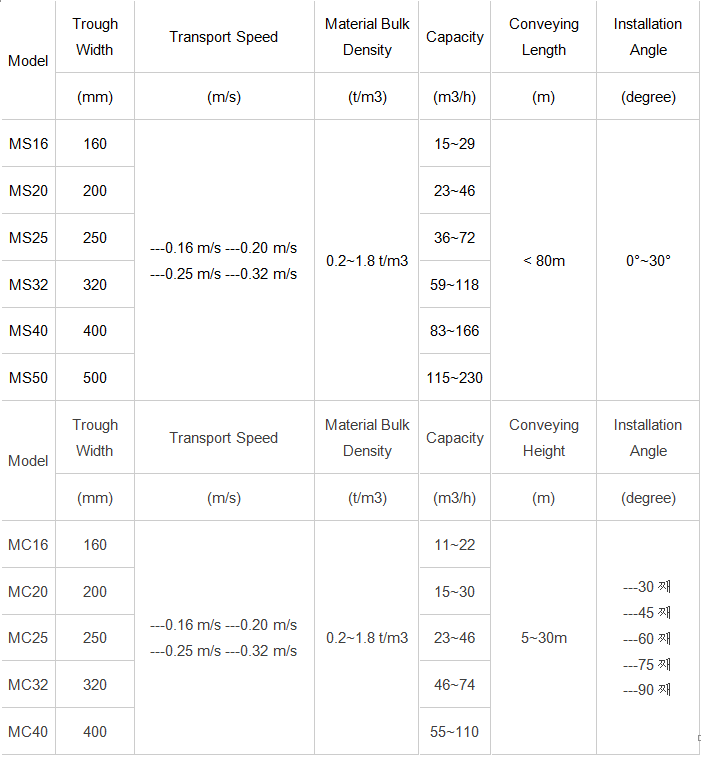

Technical Parameter

Scraper Conveyor Technical Parameters
