Rotary Trommel Screener

                                           Publisher: Rotary Screener

                                                                                                                                                                                                                                                               Date；Oct 31, 2016

Working Principle of rotary trommel screener:

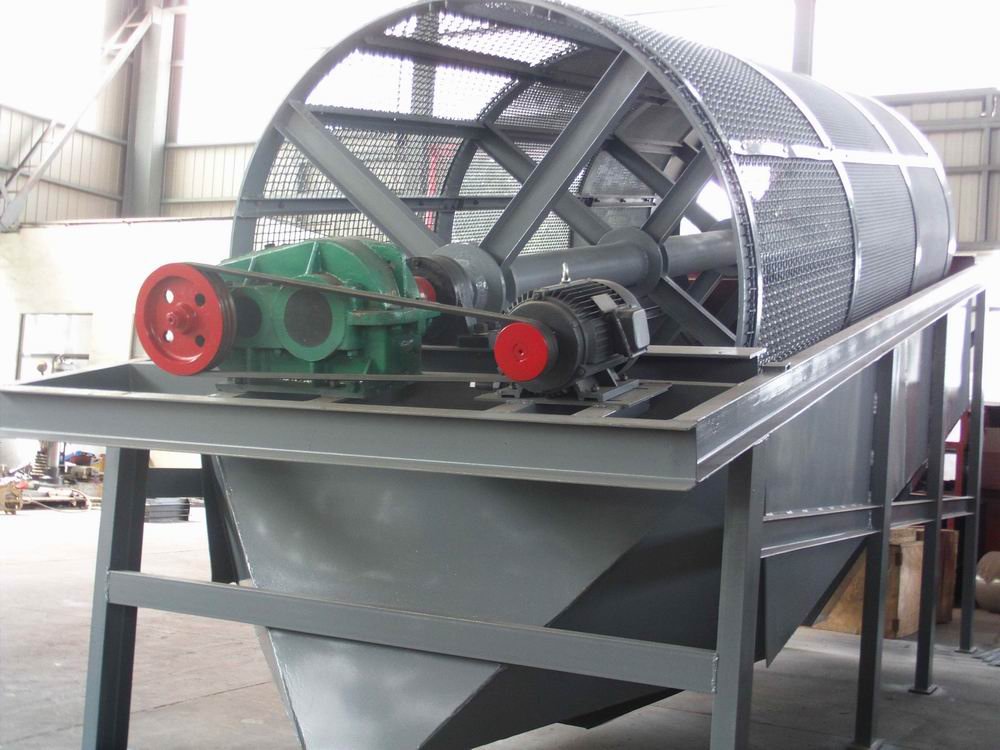

The rotary trommel screener install on the frame. The motor connected with gearbox by coupling, driven the trommel rotate circling the shaft. When the material enter the cylinder device, due to tilt and turn of the drum, make the material on the surface of the screen flip and roll, and the qualified materials (undersize) discharge from the outlet at the bottom of the trommel, unqualified material (oversize) discharge from the outlet at  at the end of the trommel. Due to the flip, rolling material inside the drum, the card in the mesh material can be pop up, prevent the mesh plug.

Features of Rotary Trommel Screener

1. Sieve mesh is not easy to block.
2. Stable operation, lower noisy.
3. Simple structure, easy to maintain.
4. Trommel is enclosed, prevent the dust entering.
5. High performance, low cost.
6. Adopt unique customized screen mesh, high efficiency, long service life.

Application of Trommel Screener:

1. Used for grading big and little stone size in quarry or separate the mud and stone powder.
2. Used for separating sand and stone in sandstone field.
3. Used for separate lump coal and pulverized coal in coal industry
4. Used for material size classification and powders separation in mining or chemical industry.

Technical Parameters:

Model	Capacity(m3/h)	Diameter(mm)	Length(mm)	Power(KW)	Dimension(mm)
GS1230	20-50	Φ1200	3000	3	3580×1590×1675
GS1530	40-80	Φ1500	3000	5.5	3980×1790×1975
GS1830	80-150	Φ1800	3000	7.5	4150×1870×2240
GS2030	130-200	Φ2000	3000	11	4230×1950×2950
